Digital devices use multiple configurations to perform and solve pressure needs in all types of applications. From controlling low vacuum, measuring pressures up to 200 psi, or performing as a back pressure controller, these pressure meters and controllers can handle most process applications. Eliminate tedious and error-prone manual pressure meters and controllers by using the precise input and output signals with simple analog or digital signals. These signals can be used to send data to a recorder, PLC, or other pressure and flow products. The easy-to-read, 4-digit LCD display and integrated keypad around the display is all that is required to program the units for service.
Pressure meters are ideal for use in pharmaceutical processing, wastewater treatment centers, or any

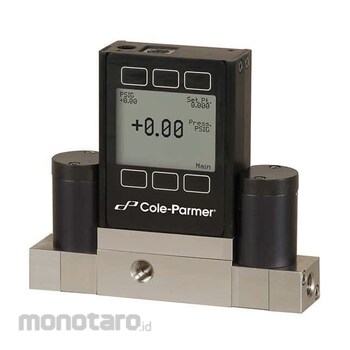

Cole Parmer Digital Pressure Controller Dual-Valve
#Grup produk P106259465
Spesifikasi
| Accuracy (%) | ±0.25 (full-scale) (>0.07 psia) |
|---|---|
| Maximum Pressure (psi) | 100 |
| Minimum Pressure (psia) | None |
| Maximum Pressure (psia) | 100 |
| Minimum Temperature (°F) | 14 |
| Maximum Temperature (°F) | 122 |
| Battery Type | 12 to 30 VDC |
| Depth (cm) | 2.8 |
| Depth (inch) | 1 |
| Display | 4-digit LCD, 7/16\"H (1.1 cm) |
| Height (cm) | 10.5 |
| Height (inch) | 4 |
| Maximum Temperature (°C) | 50 |
| Media Compatibility | Dry, noncorrosive gases |
| Minimum Temperature (°C) | -10 |
| Output (V DC) | 0 to 5; RS-232 |
| Process Connection (inch) | 1/8 NPT(F) |
| Unit of Measurement | psia, mm Hg, \" Hg, \" WC, mbar, Atm, Torr, kPa |
| Wetted Materials | Brass, glass, silicone, silicone RTV, Stainless Steel, Viton® |
| Width (inch) | 4 |
