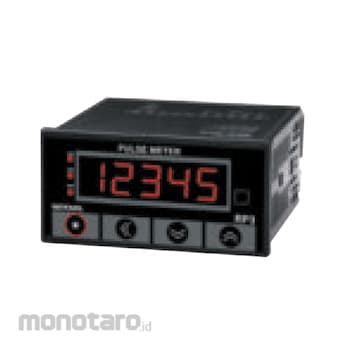

Hanyoung Pulse Meter
#Grup produk P106232459
Spesifikasi
| Dimension (WxHxD) (mm) | 96.0x48.0x100.0 |
|---|---|
| Max. Display Digits | 5 digits (0-99999) |
| Display Cycle | 0.05 sec, 0.5 sec, 1 sec, 2 sec, 4 sec, 8 sec |
| Measuring Accuracy | ±0.02 % rdg ±1 dig (mode F1, F2, F3, F4, F5), ±0.1 % rdg ±1 dig (Mode F6) |
| Insulation Resistance (MΩ) | min. 10 (500 V d.c., between live part - unfilled part) |
| Dielectric Strength (V) | 2000 a.c. 60Hz for 1 min (between power terminal - case, power terminal - input terminal) |
| Ambient Humidity | 35 - 85% RH (Without condensation) |
| Ambient Temperature (°C) | -10 - 50 |
| Power Consumption | AC: Approx. 9.5VA; DC: Approx. 5W |
| Power Voltage (V) | 100-240 a.c. 50/60Hz |
| Sensor Power (V) | 12 d.c. ±10 %, 120mA max. |
| Shock Resistance (m/s) | 300 XYZ each direction 3 times |
| Storage Temperature (°C) | -20 - 60 |
| Vibration Resistance | 10 - 55Hz double amplitude 0.75mm XYZ each direction 2 hours |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Auto zero time setting- Comparative output (HH, H, GO, L, LL)
- Start compensation timer function
- Max. value (5 types), min value (5 types) save
- Power outage comp
- Max. 10kHz input
