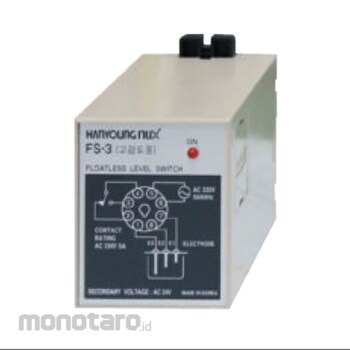

Hanyoung Floatless Switch
#Grup produk P106232176
Spesifikasi
| Power Voltage (V) | 110 a.c. 50/60Hz, 220 a.c. 50/60Hz |
|---|---|
| Allowable Voltage Fluctuation Range | ±10 % of power voltage |
| Inter-electrode Voltage (secondary voltage) (V) | Low: 8 a.c; High: 24 a.c |
| Response Time (ms) | 80 max. for operation; 160 max. for return |
| Inter-electrode Operational Resistance (kΩ) | Low: 0 - Approx. 7; High: 0 - Approx. 27 |
| Ambient Humidity | 35 - 85% RH (without condensation) |
| Ambient Temperature (°C) | -10 - 50 |
| Control Output | Relay contact outputs: (1c): 250 V a.c 5 A (resistive load) |
| Dielectric Strength (V) | 2000 a.c 50/60Hz for 1 min (1st terminal - 2nd terminal) |
| Insulation Resistance (MΩ) | Min. 100 (500 V d.c Mega), conductive and exposed unfilled metal par |
| Inter-electrode Return Resistance (kΩ) | Low: Approx. 15; High: Approx. 38 |
| Life | Mechanical : min. 5 million times (relay type), Electrical : 500,000 times min (resistive load) |
| Power Consumption (V/A) | Approx. 3.2 |
| Shock Resistance (m/s) | 300 |
| Vibration Resistance | 10 - 55Hz (1 minute cycle) single amplitude: 0.76mm X, Y, Zeach direction 2 hours |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Used for agricultural water, water treatment plant, sewage treatment plant, factory and several surface water control- Lightweight and easy to install
- Operation status is indicated by LED
