BL1.5 BlackStone pumps have been designed to meet the ever changing needs of industry. With their broad, flat base and mounting holes for tank, shelf or floor mounting (horizontal), the pumps can be easily mounted anywhere in your plant. The rear of the pump housing also provides mounting holes to facilitate vertical mounting: wall, tank or machine. Since the pump valve assembly and controls for the unit are located on the front of the pump, there is never a problem with installation or flow adjustments.
BlackStone's positive displacement solenoid driven pumps use a minimum number of moving parts, therefore reducing the chance of mechanical failure. Part wear and oiling associated with motor driven pumps (ball-bearings, gear drives and cams) are not a concern with these pumps. Blackstone pumps are more accurate than standard pumps due to the positive displacement design ensuring each stroke is identical to the strokes before and after it, thus keeping the flow rate consistent. A wide range of BlackStone pumps with different dosing capacities are available for your specific dosing needs. Each pump is supplied with disch

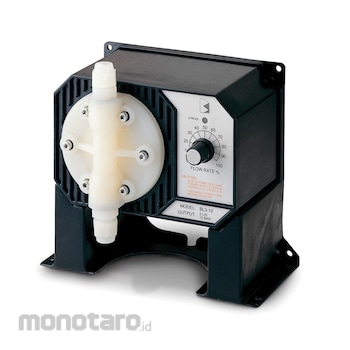

Hanna Instruments Blackstone 18.3 L/h Chemical Dosing Pump
#Grup produk P106217812
Spesifikasi
| Power Consumption | approximately 200 W |
|---|---|
| Maximum Flow Rate (lph) | 18.3 (4.8 gph) |
| Dosing Pump Casing | fibre-reinforced polypropylene |
| Body Material | diaphragm in PTFE, glass ball valves and O-rings in FPM/FKM, polyethylene 5 x 8 mm tubing |
| Dosing Pumphead Materials | pumphead in PVDF (PolyVinyliDene Fluoride) |
| Self Priming | maximum self-priming height is 1.5 m (5 ft.). |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing |
| IP Rating | IP65 |
| Dimensions (mm) | 165x194x121(6.5x7.6x4.8\") |
| Power Supply (VAC/Hz) | 220/240; 50-60 |
