BlackStone pumps have been designed to meet the ever changing needs of industry. With their broad, flat base and mounting holes for tank, shelf or floor mounting (horizontal), the pumps can be easily mounted anywhere in your plant. The rear of the pump housing also provides mounting holes to facilitate vertical mounting: wall, tank or machine. Since the pump valve assembly and controls for the unit are located on the front of the pump, there is never a problem with installation or flow adjustments.
Blackstone pumps are more accurate than standard pumps due to the positive displacement design ensuring each stroke is identical to the strokes before and after it, thus keeping the flow rate consistent. A wide range of BlackStone pumps with different dosing capacities are available for your specific dosing needs. Each pump is supplied with discharge and suction valves.

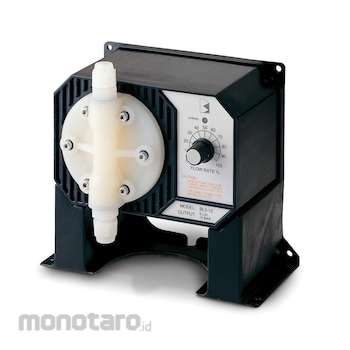

Hanna Instruments Blackstone 1.5 L/h Chemical Dosing Pump
#Grup produk P106217797
Spesifikasi
| Power Consumption | approximately 200 W |
|---|---|
| Over Current Protection (V) | 250 (fuse) |
| Maximum Flow Rate (lph) | 1.5 (0.4 gph) |
| Maximum Pressure (bar) | 13 (188.5 psi), dosing frequency strokes per min : 120 |
| Dosing Pump Casing | fibre-reinforced polypropylene |
| Body Material | Diaphram in PTFE (PolyTetraFluoro-Ethylene), glass ball valves and O-rings in Viton® polyethylene 5 x 8 mm tubing and 2/8\" injection fitting |
| Dosing Pumphead Materials | pumphead in PVDF (PolyVinyliDene Fluoride), |
| Self Priming | maximum self-priming height is 1.5 m (5 ft.). |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% non-condensing |
| Power Supply (VAC/Hz) | 220/240; 50/60 |
