A fan unit for powerful suction and exhaust.
You can set a filter with dedicated activated carbon.
The exterior is a melamine baked steel sheet and the blades are polyester powder coated steel sheets.
* Duct, mouth and band are optional.
* The actual product may differ from the image. (No screwing on the intake side, screwing specification change around the exhaust port, power intake and fuse are lined up vertically)

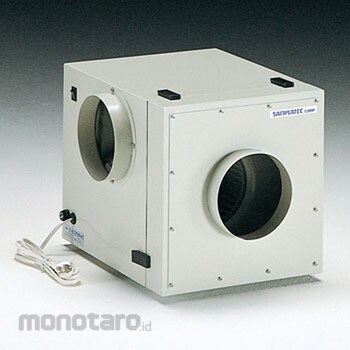

Sanplatec Sirocco fan unit
#Grup produk P106152409
Spesifikasi
| Dimensions (WxHxL) (mm) | 390x4252x345 |
|---|---|
| External Dimensions (LxWxH) (mm) | 365x308x288 |
| Mass (kg) | 10 |
| Frequency (Hz) | 50/60 |
| Power (Single Phase / V) | 100 |
| Duct Diameter (Φmm) | Mounting | 125 (Please stop banding in the mouth) |
| Starting Current (A) | 0.89/0.88 |
| Air Volume (m³/minute) | 8.1/8.1 |
| Maximum Load Current (A) | 0.56/0.67 |
| Output Power (W) | 75 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* Duct, mouth and band are optional.* The actual product may differ from the image. (No screwing on the intake side, screwing specification change around the exhaust port, power intake and fuse are lined up vertically)
Feature
A fan unit for powerful suction and exhaust.You can set a filter with dedicated activated carbon.
The exterior is a melamine baked steel sheet and the blades are polyester powder coated steel sheets.
