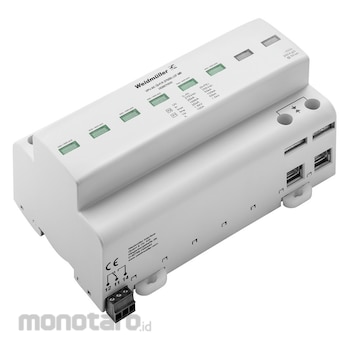

WEIDMULLER VPU Typ I: 230/400V; 400/690V Class I, LPL I,II,III,IV with Remote Alert VPU I 280 V LCF 25 kA MB
#Grup produk P106141476
Spesifikasi
| Connection Type | Screw connection: pluggable |
|---|---|
| Maximum Cross Section for Connected Wire Solid Core (mm²) | 1.5 |
| Minimum Cross Section for Connected Wire Solid Core (mm²) | 0.14 |
| Depth (mm) | 71 |
| GTIN (EAN) | 4050120000000 |
| Depth (inch) | 2.795 |
| Height (inch) | 3.898 |
| Height (mm) | 99 |
| Humidity | 5 - 95% rel. humidity |
| Mounting dimension - height (mm) | 76 |
| Net Weight (g) | 1,079 |
| Operating Temperature (°C) | -40 to 85 |
| Order No. | 2638070000 |
| Qty (pcs) | 1 |
| Type | VPU AC I 3+1 R 275/25 LCF MB |
| Version | Surge voltage arrester, Low voltage, Surge protection, Leakage-current-free, with remote contact, TN-C-S, TN-S, TT, IT with N, IT without N |
| Width (inch) | 5.669 |
| Width (mm) | 144 |
