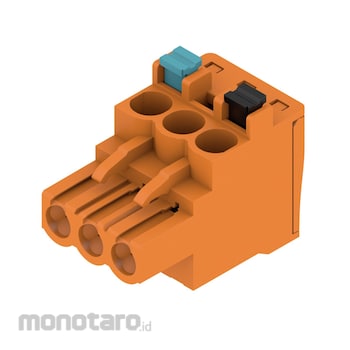

WEIDMULLER Series BL/SL 5.08 Female Plug, Push in Spring Connection BLF 5.08HC/90 SN
#Grup produk P106137190
Spesifikasi
| Conductor outlet direction (°) | 90 |
|---|---|
| Depth (mm) | 26.2 |
| GTIN (EAN) | 4064680000000 |
| Height (mm) | 20.7 |
| Depth (inch) | 1.031 |
| Height (inch) | 0.815 |
| Net Weight (g) | 5.708 |
| Order No. | 2764380000 |
| Packaging | Box |
| Pitch (inch) | 0.2 |
| Pitch in mm (P) (mm) | 5.08 |
| Product data | IEC: 400 V / 24 A / 0.2 - 2.5 mm² UL: 300 V / 18.5 A / AWG 26 - AWG 12 |
| Product family | OMNIMATE Signal - series BL/SL 5.08 |
| Qty (pcs) | 120 |
| Type | BLF 5.08HC/03/90 SN OR BX SO |
| Version | PCB plug-in connector, female plug, 5.08 mm, Number of poles: 3, 90°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 3.31 mm², Box |
| Width (inch) | 0.6 |
| Width (mm) | 15.24 |
| Wire Connection Method | PUSH IN with actuator, Tension-clamp connection |
