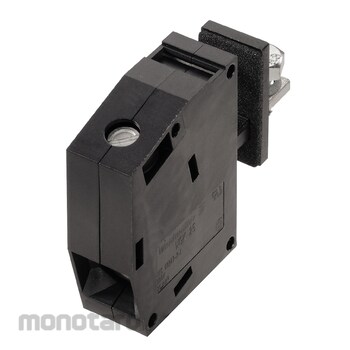

WEIDMULLER Cable lug Screw Connection WGK 25 VP
#Grup produk P106136058
Spesifikasi
| Conductor outlet direction (°) | 180 |
|---|---|
| Fitted by customer | No |
| GTIN (EAN) | 4050120000000 |
| Net Weight (g) | 119 |
| Order No. | 2717110000 |
| Packaging | Box |
| Clamping Screw | M 6 |
| Product data | IEC: 690 V / 101 A / 6 - 35 mm² UL: 300 V / 100 A / AWG 10 - AWG 3 |
| Product family | OMNIMATE Power - series WGK |
| Protection Degree | IP20 |
| Qty (pcs) | 15 |
| Screwdriver blade | 1.2 x 6.5 |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Type | WGK 25 VP IK3 BLOCK 3P BK BX |
| Version | OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 25 mm², Wemid (PA) |
| Wire Connection Method | Cable lug: ring cable / spade lug |
