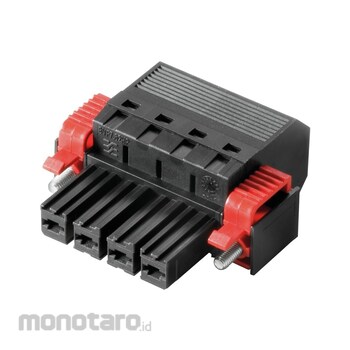

WEIDMULLER OMNIMATE Power HP Female Plug, Push in Spring Connection BVF 7.62HP/180SF
#Grup produk P106135554
Spesifikasi
| Conductor outlet direction (°) | 180 |
|---|---|
| Depth (mm) | 44.7 |
| GTIN (EAN) | 4032250000000 |
| Height (mm) | 20 |
| Depth (inch) | 1.76 |
| Height (inch) | 0.787 |
| Net Weight (g) | 31.06 |
| Number of Poles | 5 |
| Order No. | 1164570000 |
| Packaging | Box |
| Pitch (inch) | 0.3 |
| Pitch in mm (P) (mm) | 7.62 |
| Product data | IEC: 1000 V / 57 A / 0.5 - 10 mm² UL: 600 V / 39 A / AWG 24 - AWG 8 |
| Product family | OMNIMATE Power - series BV/SV 7.62HP |
| Qty (pcs) | 25 |
| Type | BVF 7.62HP/05/180SF SN BK BX CO |
| Type of Connection | Field connection |
| Version | PCB plug-in connector, female plug, 7.62 mm, Number of poles: 5, 180°, PUSH IN without actuator, Tension-clamp connection, Clamping range, max. : 10 mm², Box |
| Wire Connection Method | PUSH IN without actuator, Tension-clamp connection |
