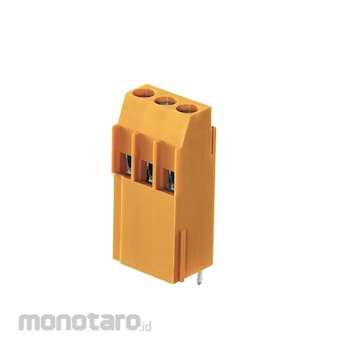

WEIDMULLER Clamping Yoke Screw Connection 6mm² (AWG 12)
#Grup produk P106135013
Spesifikasi
| Depth (mm) | 10.84 |
|---|---|
| GTIN (EAN) | 4050120000000 |
| Height (mm) | 36.6 |
| Height of lowest version (mm) | 31.1 |
| Depth (inch) | 0.427 |
| Height (inch) | 1.441 |
| Mounting onto the PCB | THT solder connection |
| Net Weight (g) | 6.305 |
| Order No. | 2697870000 |
| Packaging | Box |
| Product data | IEC: 500 V / 32.5 A / 0.5 - 6 mm² UL: 300 V / 20 A / AWG 26 - AWG 12 |
| Product family | OMNIMATE Signal - series LL |
| Property, clamping point | WireReady |
| Qty (pcs) | 100 |
| Type | LL1N 5.00/03/90 4.5SN BK BX |
| Version | Printed circuit board terminals, 5.00 mm, Number of poles: 3, 90°, Solder pin length (l): 4.5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 6 mm², Box |
| Width (inch) | 0.616 |
| Width (mm) | 15.64 |
| Wire Connection Method | Clamping yoke connection |
