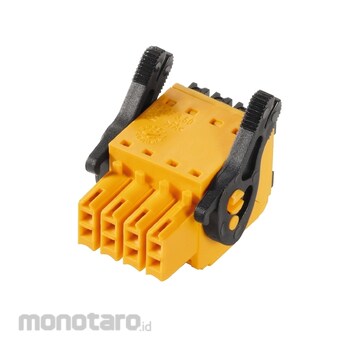

WEIDMULLER Series B2CF/S2C and B2L/S2L - 2-row Female Plug - Push in Spring Connection B2CF 3.50/180LR
#Grup produk P106134917
Spesifikasi
| Depth (mm) | 29.9 |
|---|---|
| GTIN (EAN) | 4050120000000 |
| Height (mm) | 17.25 |
| Net Weight (g) | 11.274 |
| Depth (inch) | 1.177 |
| Height (inch) | 0.679 |
| Order No. | 2690590000 |
| Packaging | Box |
| Pitch (inch) | 0.138 |
| Pitch in mm (P) (mm) | 3.5 |
| Product data | IEC: 320 V / 13.4 A / 0.14 - 1.5 mm² UL: 300 V / 9.5 A / AWG 30 - AWG 16 |
| Product family | OMNIMATE Signal - series B2C/S2C 3.50 - 2-row |
| Qty (pcs) | 54 |
| Type | B2CF 3.50/16/180LR AU OR BX |
| Type of Connection | Field connection |
| Version | PCB plug-in connector, female plug, 3.50 mm, Number of poles: 16, 180°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 1.5 mm², Box |
| Width (inch) | 1.374 |
| Width (mm) | 34.9 |
| Wire Connection Method | PUSH IN with actuator, Tension-clamp connection |
