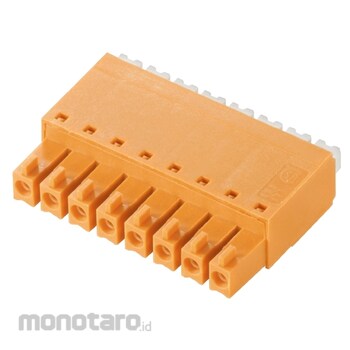

WEIDMULLER Series BC/SC 3.81 Female Plug - Push in Spring Connection BCF 3.81/180
#Grup produk P106134272
Sebelum PPN:
Rp3.099.900 - Rp4.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Depth (mm) | 22 |
|---|---|
| GTIN (EAN) | 4050120000000 |
| Height (mm) | 7.9 |
| Depth (inch) | 0.866 |
| Height (inch) | 0.311 |
| Packaging | Box |
| Pitch (inch) | 0.15 |
| Pitch in mm (P) (mm) | 3.81 |
| Product data | IEC: 320 V / 17.5 A / 0.14 - 1.5 mm² UL: 300 V / 10 A / AWG 26 - AWG 16 |
| Product family | OMNIMATE Signal - series BC/SC 3.81 |
| Qty (pcs) | 50 |
| Version | PCB plug-in connector, female plug, 3.81 mm, Number of poles: 4, 180°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 1.5 mm², Box |
| Width (inch) | 0.604 |
| Width (mm) | 15.33 |
| Wire Connection Method | PUSH IN with actuator, Tension-clamp connection |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Ulasan Produk
Tidak ada ulasan
