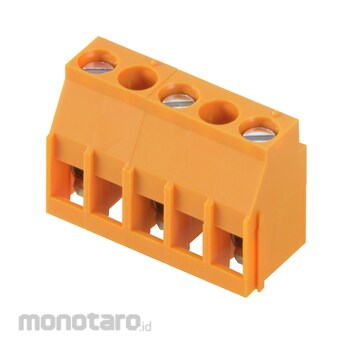

WEIDMULLER PCB Terminals - OMNIMATE Signal Clamping Yoke Screw Connection
#Grup produk P106134218
Spesifikasi
| Conductor outlet direction (°) | 90 |
|---|---|
| Depth (mm) | 11 |
| GTIN (EAN) | 4050120000000 |
| Height (mm) | 20.3 |
| Depth (inch) | 0.433 |
| Height (inch) | 0.799 |
| Height of lowest version (mm) | 17.1 |
| Net Weight (g) | 21.3 |
| Order No. | 2624460000 |
| Packaging | Box |
| Pitch (inch) | 0.394 |
| Pitch in mm (P) (mm) | 10 |
| Product data | IEC: 1000 V / 32 A / 0.5 - 6 mm² UL: 300 V / 30 A / AWG 26 - AWG 10 |
| Product family | OMNIMATE Signal - series LL |
| Property, clamping point | WireReady |
| Qty (pcs) | 50 |
| Type | LL 10.00/07/90 3.2SN OR BX |
| Version | Printed circuit board terminals, 10.00 mm, Number of poles: 7, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box |
| Wire Connection Method | Clamping yoke connection |
