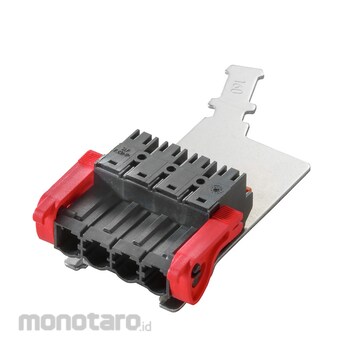

WEIDMULLER Male Plug, Push in Spring Connection with Pluggable shield Connector SLF 7.62HP/180LRSH
#Grup produk P106133398
Spesifikasi
| Conductor outlet direction (°) | 180 |
|---|---|
| GTIN (EAN) | 4050120000000 |
| L1 in (mm) | 22.86 |
| Net Weight (g) | 26.947 |
| Number of Poles | 4 |
| L1 in (inch) | 0.9 |
| Order No. | 2632780000 |
| Packaging | Box |
| Pin series quantity | 1 |
| Pitch (inch) | 0.3 |
| Pitch in mm (P) (mm) | 7.62 |
| Product data | IEC: 1000 V / 24 A / 0.5 - 2.5 mm² UL: 600 V / 20 A / AWG 20 - AWG 12 |
| Product family | OMNIMATE Power - series BL/SL 7.62HP |
| Qty (pcs) | 40 |
| Rated Cross Section (mm²) | 2.5 |
| Type | SLF 7.62HP/04/180LRSH160 SN BK BX |
| Type of Connection | Field connection |
| Version | PCB plug-in connector, male plug, 7.62 mm, Number of poles: 4, 180°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 2.5 mm², Box |
| Wire Connection Method | PUSH IN with actuator, Tension-clamp connection |
