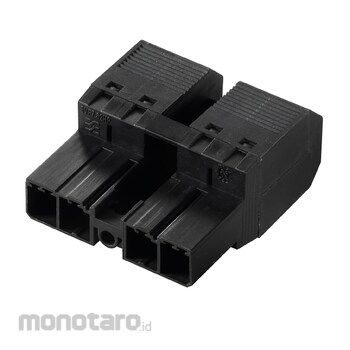

WEIDMULLER Male Plug, Push in Spring Connection SVF 7.62HP/180 SVF 7.62HP/180MF
#Grup produk P106133112
Spesifikasi
| Conductor outlet direction (°) | 180 |
|---|---|
| GTIN (EAN) | 4050120000000 |
| L1 in (mm) | 38.1 |
| Net Weight (g) | 24.226 |
| Number of Poles | 5 |
| L1 in (inch) | 1.5 |
| Order No. | 2630400000 |
| Packaging | Box |
| Pin series quantity | 1 |
| Pitch (inch) | 0.3 |
| Pitch in mm (P) (mm) | 7.62 |
| Product data | IEC: 1000 V / 57 A / 0.5 - 10 mm² UL: 600 V / 39 A / AWG 24 - AWG 10 |
| Product family | OMNIMATE Power - series BV/SV 7.62HP |
| Qty (pcs) | 30 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Type | SVF 7.62HP/05/180MF5 SN BK BX |
| Type of Connection | Field connection |
| Version | PCB plug-in connector, male plug, 7.62 mm, Number of poles: 5, 180°, PUSH IN with actuator, Tension-clamp connection, Clamping range, max. : 10 mm², Box |
| Wire Connection Method | PUSH IN with actuator, Tension-clamp connection |
