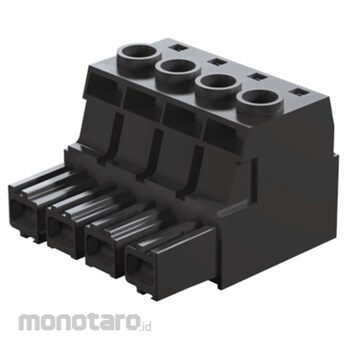

WEIDMULLER Female Plug, Clamping-yoke Screw Connection BUZ 10.16HP/180
#Grup produk P106133033
Spesifikasi
| Conductor outlet direction (°) | 180 |
|---|---|
| GTIN (EAN) | 4050120000000 |
| L1 in (mm) | 30.48 |
| Net Weight (g) | 0.6 |
| Number of Poles | 4 |
| L1 in (inch) | 1.2 |
| Order No. | 2695500000 |
| Pin series quantity | 1 |
| Pitch (inch) | 0.4 |
| Pitch in mm (P) (mm) | 10.16 |
| Product data | IEC: 1000 V / 78.3 A / 0.2 - 16 mm² UL: 600 V / 60 A / AWG 22 - AWG 4 |
| Product family | OMNIMATE Power - series BU/SU 10.16HP |
| Qty (pcs) | 28 |
| Rated Cross Section (mm²) | 16 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Type | BUZ 10.16HP/04/180 AG BK BX SO |
| Type of Connection | Field connection |
| Version | PCB plug-in connector, female plug, 10.16 mm, Number of poles: 4, 180°, Clamping yoke connection, Clamping range, max. : 16 mm² |
| Wire Connection Method | Clamping yoke connection |
