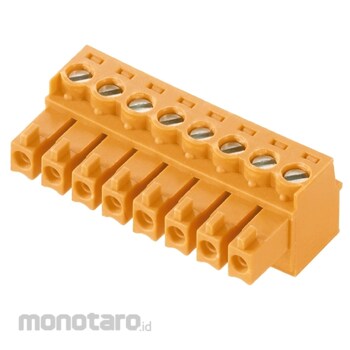

WEIDMULLER Series BC/SC 3.81 Female Plugs - Screw Connection BCZ 3.81/180
#Grup produk P106132779
Spesifikasi
| Depth (mm) | 16.1 |
|---|---|
| GTIN (EAN) | 4050120000000 |
| Height (mm) | 11.1 |
| Net Weight (g) | 2.44 |
| Depth (inch) | 0.634 |
| Height (inch) | 0.437 |
| Order No. | 1256010000 |
| Packaging | Box |
| Pitch in mm (P) (mm) | 3.81 |
| Product data | IEC: 320 V / 17.5 A / 0.2 - 1.5 mm² UL: 300 V / 10 A / AWG 28 - AWG 16 |
| Product family | OMNIMATE Signal - series BC/SC 3.81 |
| Qty (pcs) | 200 |
| REACh SVHC | Lead 7439-92-1 |
| Type | BCZ 3.81/03/180 SN GN BX PRT |
| Type of Connection | Field connection |
| Version | PCB plug-in connector, female plug, 3.81 mm, Number of poles: 3, 180°, Clamping yoke connection, Clamping range, max. : 1.5 mm², Box |
| Width (inch) | 0.454 |
| Width (mm) | 11.52 |
| Wire Connection Method | Clamping yoke connection |
