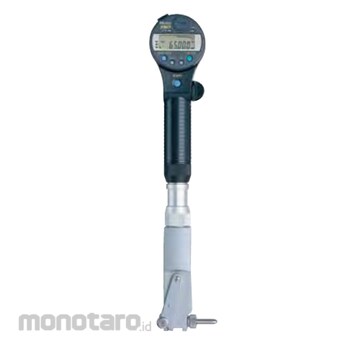

Mitutoyo ABS Digital Bore Gage
#Grup produk P106121621
Spesifikasi
| Range | 45-100 |
|---|---|
| Stroke of Contact Point (mm) | 1.2 |
| Resolution (mm) | 0.001 |
| Wide Range Accuracy (mm) | 0.003 or less |
| Adjacent error (mm) | 0.002 or less |
| Battery | SR44 (2 pcs.), 938882. For initial operational checks (standard accessory) |
| Battery Life | Approx. 2,000 hours under normal use. |
| Display | 7 segments 6 digits decimal numeric with minus sign, in/mm, Tolerance judge indication, Analog indication |
| Dust / Water protection level | IP53 (IEC60529/JIS D0207, C0920) |
| Guide Force (N) | 10 N or less |
| Measuring Force (N) | 5 or less |
| Repeatability | 0.002 mm or less |
| Sampling frequency | 50 times/s |
| Scale Type | ABSOLUTE electrostatic linear encoder |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
For easy and accurate measurement of inside diameters
Feature
- These ABSOLUTE Digimatic bore gages are exclusively designed for inside diameter measurement. - ABS (ABSOLUTE) type bore gages are not subject to overspeed error.
- Up to four Extension Rods (optional) can be connected for measuring at the bottom of a hole 2 m deep.
- The display and grip can be rotated up to 320° and the display can be inclined up to 90°, so that it is easily readable from any direction.
- The minimum value holding function provides easy measurement of hole diameter.
- The gauge block set for master setting allows quick and accurate zero-point setting.
- A Bore Gage Checker and a range of Setting Rings are available to aid in accurately setting a gage before making a measurement. (For details, refer to pages C-46 and C-47)
