Mitutoyo Analog Micrometer Head Metric Small Thimble Type
#Grup produk P106121302
Spesifikasi
| Units | Metric |
|---|---|
| Range (mm) | 0-13 |
| Accuracy (µm) | ±2 |
| Graduation (mm) | 0.01 |
| Stem Diameter (mm) | 9.5 |
| STEM | w/clamp nut |
| Scale Surface | Hard chrome plating |
| Spindle Pitch (mm) | 0.5 |
| Technology | Mechanical |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

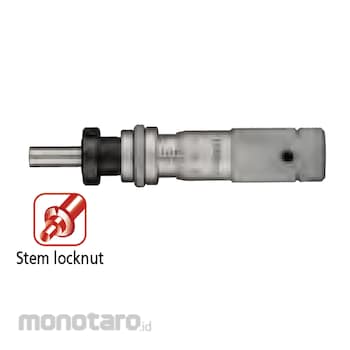

The Mitutoyo standard micrometer head can be set to zero at any position by loosening the set screw. The small size of the micrometer head allows it fit in tighter spaces while providing accurate placement and measurements. The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.
Feature
Set screw allows for zero setting at any positionAvailable in Metric and Inch models
Smaller size mic head has a 13mm thimble diameter
Spindle range is 13mm / .5”
Mounting stem diameter is 9.5mm / .375”
Spindle diameter is 5mm / .197”
Mic head total lengths (at stroke end) are 75mm / 2.95” and 83.6mm / 3.29”
Reverse reading is available on some models
Spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel. Available in spherical or flat types
Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
