Mitutoyo Analog Holtest Two-point Internal Micrometer Inch
#Grup produk P106119325
Spesifikasi
| Dimension Unit (mm) | 205x127x98 |
|---|---|
| Extension rod | None |
| Gradient Spacing (inch) | 0.0001 |
| Graduation (inch) | 0.0001 |
| IP Rating | None |
| Item | Holtest |
| Manufacturing Number | 368-026 |
| Material | Stainless Steel |
| Maximum Measurement (inch) | 0.24-0.28 |
| Measurement Accuracy (inch) | +/-0.0001 |
| Range (inch) | 0.24-0.28 |
| Resolution (inch) | 0.0001 |
| Size (inch) | 0.24-0.28 |
| Style Name | Vernier |
| Type | Vernier Holtest |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

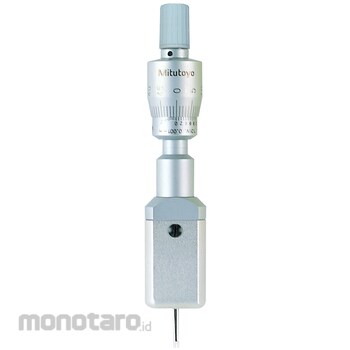

The Mitutoyo mechanical Holtest internal micrometer features three hardened-steel anvils evenly spaced at 120° for true alignment of the axis bore for accurate, easily repeatable measurements. Contact points are coated with Titanium Nitride (TiN)* for added durability and precision. The holtest’s ratchet stop mechanism provides a constant measuring force on the hardened-steel spindle to ensure accurate, even measurements.
Feature
Available in Metric and Inch modelsOptional extension rod allows for measuring deep holes
Optional setting rings for zero point adjustment are available
Scale on thimble and sleeve is laser etched for easier reading in all conditions
Holtests up to 100mm / 4″ diameter measurements supplied in a fitted plastic case
Holtests over 100mm / 4″ diameter measurements supplied in a wooden case
