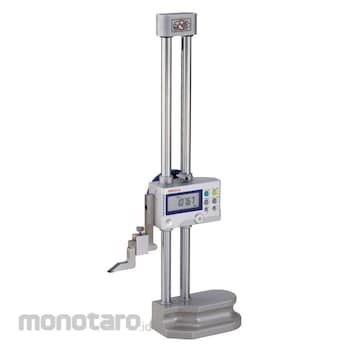

Mitutoyo DIGITAL HEIGHT GAGE 0-1000/0.01MM 192-615-10

- Double-column structure ensures high measuring accuracy.
- Ergonomic base fits comfortably in the hand.
- A bidirectional touch-trigger probe is available as an optional accessory for 192-663-10,192- 664-10,192-665-10,192-670-10,192-671- 10,192-672-10 and 192-673-10.
- Better readability is provided thanks to display of measurement result with a large character height (11 mm) and high-contrast LCD.
- Inclined handle improves slider ergonomics.
- Allows integration into statistical process control and measurement systems. Refer to page A-3.
- Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory)
- Battery life is 3,500 hours in continuous use.
- Carbide-tipped long scriber (905200 with overall length of 150 mm) is provided as a standard accessory for 192-663-10, 192- 664-10 and 192-665-10.
- For precision Black Granite Surface Plates, refer to page E-49.

- Origin-setting (ABS measurement mode): Any arbitrary value can be stored as the origin point.
- Zero-setting (INC measurement mode): Displayed value can be set to zero at any arbitrary position of the slider.
- Origin restoration: Previously set origin is restored when switching back to ABS mode.
- Presetting (ABS INC measurement mode): Displayed value can be set to any arbitrary value, including negative values.
- Measuring direction can be switched at the press of a button.
- Data hold Display value can be held. Reverts to ABS or INC mode when cancelled.
- Alarm: Error message is displayed when overflow or overspeed of displayed value arises and measurement is stopped.
- Data output: Allows integration into statistical process control and measurement systems. (Refer to page A-3.)
- Fine and coarse height adjustment through knob and wheel combination. Slider height adjustment wheel allows fine and coarse height adjustment.
- Low-voltage alert: When battery voltage becomes low, a warning appears in the display.
- Probe-tip diameter compensation: An adjustment is applied to the raw measurement data to compensate for the effect of the size of the spherical contact point used by the bidirectional touch-trigger probe.
