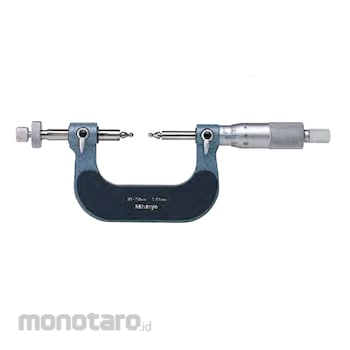

Mitutoyo Analog Gear Tooth Micrometer Metric Interchangeable Ball Anvil
#Grup produk P106118122
Sebelum PPN:
Rp5.399.900 - Rp14.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Technology | Mechanical |
|---|---|
| SPC Output | No |
| Units | Metric |
| Graduation (mm) | 0.01 |
| Ratchet/Thimble | Ratchet Stop |
| Spindle Feed Error (µm) | 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Mitutoyo gear tooth micrometer series measures the over-pin diameter of gears. Precision carbide anvil and spindle ball-tipped measuring surfaces are interchangeable, with optional ball-tip faces allowing for measurement of various gear modules. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
Feature
'- Interchangeable ball anvil-spindle tips for various gear modules (0.5-5.25) are optional- Measuring surfaces are constructed of carbide to reduce wear
- Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
- Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
- Frame has a non-slip finish for better grip in shop environments
- Includes a standard bar except for 0-25mm and 0-1” models
- Supplied in fitted plastic case (models over 150mm have a wooden case)
