Mitutoyo DEPTH MICROMETER 50/0.01MM 129-109
#Grup produk P106114746
Spesifikasi
| Units | Metric |
|---|---|
| Range (mm) | 0-50 |
| Graduation (mm) | 0.01 |
| Accuracy (µm) | ±3 |
| Flatness of Reference Surface Base (µm) | 1.3 |
| Flatness of Measuring Face (µm) | 0.3 |
| Base Size (mm) | 63.5x16 |
| Measuring rod diameter (mm) | 4 |
| Parallelism Between Reference Face and Measuring Rod Face (µm) | (4+L/50)µm, L=Max. measuring length (mm) |
| Rod Quantity | 2 |
| Technology | Mechanical |
| Zero Point Error of Rods (µm) | 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

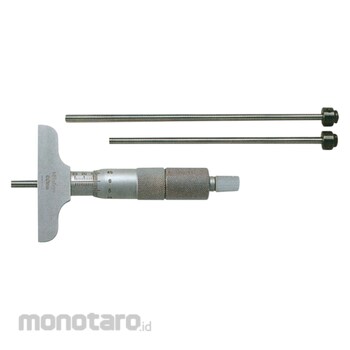

The Mitutoyo interchangeable rod type depth micrometer offers great versatility for measuring a range of depths with the included extension rods. The depth micrometer’s rod contact measuring points are lapped and carbide tipped for incredible flatness and better precision. The ratchet stop mechanism provides uniform pressure for precise, repeatable measurements.
Feature
Available in Metric and Inch modelsMetric models available in ranges: 0-50mm, 0-100mm and 150mm
Inch models available in ranges: 0-4”, 0-6” and 0-12”
Rod length can be adjusted in 25mm/1” increments
Rod diameters are 4mm
Measuring rod clamps provide added measurement stability
Supplied with a fitted plastic case
