Mitutoyo VERNIER HEIGHT GAGE 300/0.02MM 514-102
#Grup produk P106112809
Spesifikasi
| Units | Metric |
|---|---|
| Range (mm) | 0-300 |
| Accuracy (mm) | ±0.04 |
| Graduation (mm) | 0.02 |
| Main Scale Adjustment (mm) | 15 |
| Slider Fine Feed (mm) | 4 |
| Optional Accessories | 953638, 902053, 07GZA003 |
| Standard Accessories | 07GZA000, 05GZA033 |
| Technology | Mechanical |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

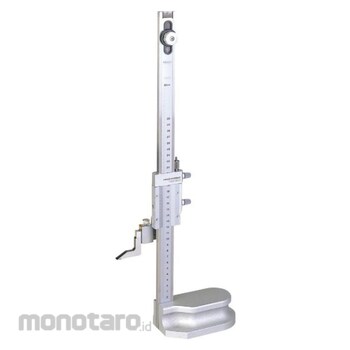

The Mitutoyo Vernier height gage slider and beam are constructed of hardened stainless steel and the beam is adjustable with a ring-type lock nut to support repositioning of the zero reference point. The hand-operated slider features a fine-adjustment carriage for precise feeding. The Vernier sliding scale provides measurements between marks on the main scale for ultra-precise readings.
Feature
Available in Metric and Inch modelsOptional magnifier is available for easier reading
Zero reference point can be adjusted for manual change of the base position
Scriber is carbide tipped for accuracy and durability
Scales have a satin chrome finish to reduce glare for easier reading
Base is shaped to allow a secure grip
Fine feeding carriage provides precise measurements
