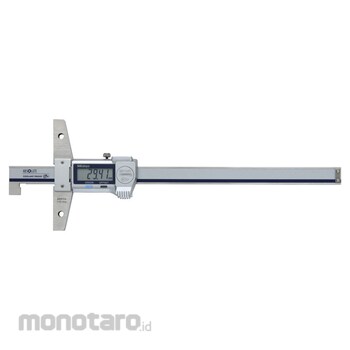

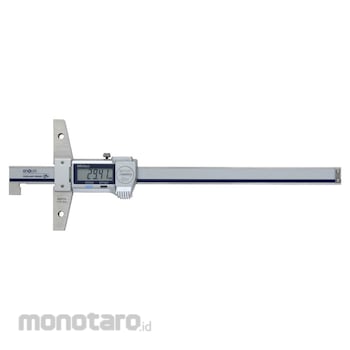

Mitutoyo Digital Depth Gage

- The end of the main beam is hook-shaped to allow depth and thickness measurements of a projected portion or lip in a hole, in addition to standard depth measurement.
- Coolant proof models achieve IP67 protection level.
- Enables stable depth measurement with a resolution of 0.01 mm.
- ABSOLUTE Digital Caliper (Refer to page D-6 for ABSOLUTE function.)
- Digimatic models 571-254-20 and 571-255- 20 need the compensation value (engraved on the base) added to the displayed value for correct depth measurement. However, the featured Offset function enables this to be done easily just by pressing the OFFSET button after the hook jaw is brought in contact with the base and the ORIGIN button is pressed.
- Slider operation of the Digimatic models is smooth and comfortable.
- Allows integration into statistical process control and measurement systems for models with measurement data output connector. (Refer to page A-3.)
- Battery: SR44 (1 pc.), 938882. For initial operational checks (standard accessory)
- Battery life: Approx. 5 years under normal use (for Digimatic models)
- Optional longer extension bases are available. (Refer to page D-68.)
