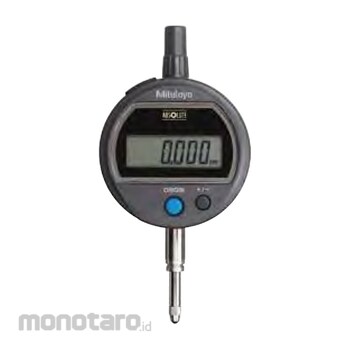

Mitutoyo Digital Indicator Solar
#Grup produk P106111165
Spesifikasi
| Units | Inch/Metric |
|---|---|
| Stem Diameter (mm) | 8 |
| Alarm | Counting Value Composition Error |
| Contact Point (mm) | Carbide Ball, Thread M 2.5x0.45 |
| Counting Direction Switchable | Yes |
| Digital Step (inch/mm) | 0,00005/0,001 |
| Display (mm) | LCD, Character Height 9 |
| H MPE (Hysteresis) (inch/mm) | 0,0001/0,002 |
| Mass Lug/Plain (g) | 150/140 |
| Max. Permissible Error E MPE (inch/mm) | 0,0001/0,003 |
| Maximum Response Speed | Unlimited |
| Measuring Force (N) | <= 1,5 |
| No. Lug Back Plate | 543-501 |
| Power Supply | Solar Cell Usable From 40 Lux Illumination |
| Protection | IP42 |
| R MPE (Repeatability) (inch/mm) | 0,0001/0,002 |
| Range (inch) | 0,5 |
| Range (inch/mm) | 0.5/12.7 |
| Size (mm) | 12.7/0.001 |
| Type | EN ISO Standard (Digital) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Mitutoyo ABS digital ID-S digital indicators provide up to a 12.7mm/.5” range in a compact design that is easy to use and read. Large push buttons provide direct, easy access to all of the indictor’s functions, and readings are shown on a large 9mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multipoint measurements. The solar power source is ready for use from 40 lux illumination and a super capacitor maintains a reserve of about 3.5 hours under low light conditions.
Feature
'- Similar in size to standard Series 2 dial indicators- Available in Metric and Inch/Metric models
- Available with or without SPC output capabilities
- Solar power and battery backup allows for reliable, longer use in any location
- Solar panel is hard-coated for increased durability
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
- SPC output function allows for fast and easy data management in real time
- Functions include Origin Set, Counting Direction Switching and inch/mm conversion (on inch/metric models only)
- Unlimited response speed eliminates over-speed errors
- IP42 for protection against objects greater than 1mm and water
- Supplied in a fitted plastic case
