Mitutoyo Digital Gear Tooth Micrometer Metric Interchangeable Ball Anvil
#Grup produk P106109142
Sebelum PPN:
Rp8.799.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Units | Metric |
|---|---|
| Resolution (mm) | 0.001 |
| Spindle Feed Error (µm) | 3 |
| Optional Accessories | 05CAZ662, 05CZA663 |
| Technology | Digimatic |
| Battery | SR44 (1 pc.) 938882 |
| Battery Life | Approx. 2.4 years under normal use |
| Display | LCD |
| Graduation (mm) | 0.01 |
| IP Rating | IP65 |
| Ratchet/Thimble | Ratchet Stop |
| SPC Output | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

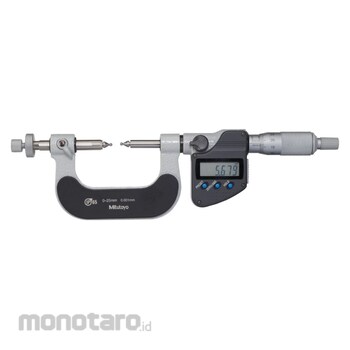

The Mitutoyo gear tooth micrometer measures the over-pin diameter of gears. Precision carbide anvil and spindle ball-tipped measuring surfaces are interchangeable, with optional ball-tip faces allowing for measurement of various gear modules. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Readings are displayed on an easy-to-read LCD readout.
Feature
Available in Metric and Inch/Metric modelsInterchangeable ball anvil-spindle tips for various gear modules (0.5-5.25) are optional
Ratchet mechanism provides an audible click to ensure measurement is performed with a constant force
SPC output function allows for quick and easy data management in real time
Functions include Zero/ABS Setting, Data Hold, Data Output, Function Lock, 2 Presets, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Includes a standard bar except for 0-25mm and 0-1” models
Supplied in fitted plastic case (models over 150mm have a wooden case)
IP65 protection permits use in environments exposed to cutting oil, dust, etc.**
