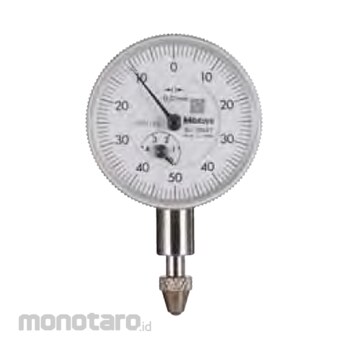

Mitutoyo Dial Indicator
#Grup produk P106108860
Spesifikasi
| Graduation (mm) | 0.01 |
|---|---|
| Max Range (mm) | 4 |
| Range Revolution (mm) | 1 |
| Dial Reading | 0-50-0 |
| Back Type | Lug Back |
| Accuracy (µm) | ±0.013 |
| Accuracy Revolution (mm) | 0.01 |
| ISO/JIS Type | Yes |
| Maximum Measuring Force (N) | 1.4 |
| Min Measuring Force (N) | 0.3 |
| Stem Diameter (inch) | 8 / 8mm |
| Technology | Mechanical |
| Thread Type | M2.5x0.45 |
| Units | Metric |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The compact design of the Mitutoyo Series 1 dial indicator allows for use in tighter, restricted spaces. The jeweled bearing provides great wear resistance and low friction movements for smooth, precise operations. The stem and spindle are constructed of hardened steel for better durability. The glare-free crystal has a scratch-resistant coating for clearer readings and better durability. A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range.
Feature
Metric or Inch models availableAvailable in several different ranges and graduations
Offered with flat back or lug back for mounting purposes
Includes green limit markers
Thumb screw bezel lock is easy-to-use for zeroing
Rack gear is machine ground for tighter fit, increased accuracy
Greater rigidity in the bearing plate reduces retracing error by up to 20%
4-Screw mounting increases impact resistance for better, longer accuracy
No through screw hole on the frame provides better dust resistance
Contact point is carbide tipped for lasting accuracy, durability
The indicator is anti-magnetic for better accuracy around metals
Crystal is glare-free with a scratch-resistant coating
Manufactured to meet JIS/ISO standards
Supplied in a fitted plastic case
