Mitutoyo Digital Uni Mike Micrometer Metric Interchangeable Anvil
#Grup produk P106108648
Spesifikasi
| Range (mm) | 0-25 |
|---|---|
| Optional Accessories | 05CZA662, 05CZA663, 201218, 201217 |
| Battery | SR44 (1 pc.) 938882 |
| Battery Life | Approx. 2.4 years under normal use |
| Display | LCD |
| Technology | Digimatic |
| Accuracy (µm) | ±3 |
| Graduation (mm) | 0.01 |
| IP Rating | IP65 |
| Measuring Faces | Carbide Tipped (Spindle Only) |
| Parallelism (µm) | 3 or less |
| Ratchet/Thimble | Rachet Stop |
| Resolution (mm) | 0.001 |
| SPC Output | Yes |
| Units | Metric |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

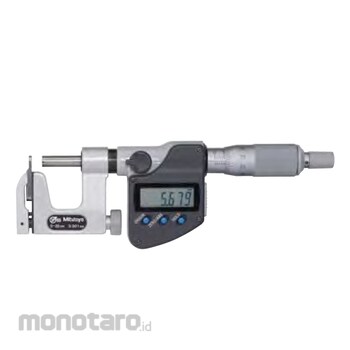

The Mitutoyo Uni-Mike digital micrometer features a clamp on the anvil side of the micrometer’s frame to allow the use of several different types of anvils. Depending on the type of anvil used, the Uni-Mike is proficient in measuring the thickness of tubes, rivet head heights, and shoulder-edge distances. A special disc anvil is available, which allows the Uni-Mike to operate similar to an indicator on a stand when measuring workpieces.
Feature
'- Available in Metric and Inch/Metric models- Metric models include a ratchet stop thimble with a constant measuring force
- Supplied with a flat anvil and rod anvil
- Special lapped disc anvils (optional). The Uni-Mike can be used as a height micrometer
- Carbide tips resist wear on the measuring faces for accurate measurements for an extended period of time
- SPC output function allows for quick and easy data management in real time
- Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock, and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Certificate of Inspection is provided
- Includes a standard bar except for 0-25mm and 0-1” models
- IP65 protection permits use in environments exposed to cutting oil, dust, etc.**
- Supplied in fitted plastic case
