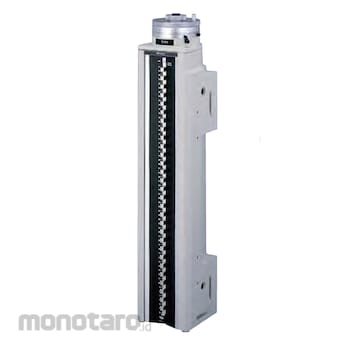

Mitutoyo Universal Height
#Grup produk P106106303
Spesifikasi
| Units | Metric |
|---|---|
| Range (mm) | 5-610 |
| Block Step (mm) | 10 |
| Block Pitch Accuracy (µm) | ±(1.5) |
| Parallelism of Blocks (µm) | 1 |
| Micrometer Head Accuracy (µm) | ±1.2 |
| Block Step Type | Straight |
| Character Height (mm) | 4 |
| Graduation (mm) | 0.001 |
| Hysteresis (µm) | 1.2-610 |
| Mic Head Travel (mm) | 20 |
| Optional Accessories | 515-112, 900574 |
| Pitch Per Revolution (mm) | 0.5 |
| Provided with Inspection Certificate | Yes |
| Resolution (mm) | 0.01 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Mitutoyo Universal Height Master provides highly accurate height calibration references in vertical or horizontal orientations, which is useful in a wide range of applications. The Universal Height Master also features a speed dial type micrometer head with fine adjustment graduated to 0.00001” for height setting, and the reference blocks are stacked straight for precise alignment. The final confirmation measurement is the sum of the measuring block position, the counter value and the micrometer head reading.
Feature
Suitable for use in either vertical or horizontal positionsAvailable in Metric and Inch
Available in different range of confirmation measurements
Straight block step: 10mm/.5”
Straight block stack arrangement ensures precision alignment
Counter tracks the number of micrometer head turns
Supplied with a gage block for zero setting
Cast iron housing provides stable height measurement, long service life
Includes Certificate of Accuracy in accordance with NIST
Supplied in a fitted wooden case
