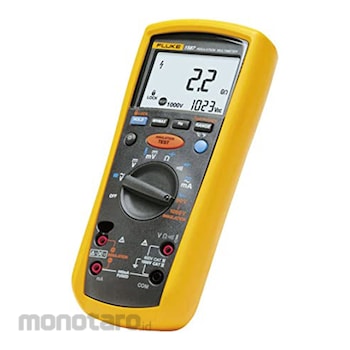

The Fluke 1587 FC and 1577 Insulation Multimeters combine a
digital insulation tester with a full-featured, true-rms digital multimeter in a single compact, handheld unit, which provides maximum
versatility for both troubleshooting and preventative maintenance.
The Fluke 1587 FC Insulation Multimeter adds four powerful new
diagnostic functions through the Fluke Connect® Measurements
app:
• PI/DAR timed ratio tests with TrendIt™ graphs identifies moisture
and contaminated insulation problems faster
• Memory storage through Fluke Connect eliminates writing down
results, reduces errors and saves data for historical tracking over
time
• Temperature Compensation through app for establishing accurate baselines and relevant historical comparisons
• Historical tracking and trending of assets identifies degradation
over time, allows real-time decisions to be made in the field
with Fluke Connect® Assets (sold separately)
FLUKE Insulation Multimeter
#Grup produk P106087910
Spesifikasi
| Operating Temperature (°C) | -20 - 55 |
|---|---|
| Vibration | Random, 2 g, 5-500 Hz per MIL-PRF-28800F |
| Radio frequency communication (GHz) | 2.4 |
| Radio frequency certification | FCC: T68-FBLE, IC: 6627A-FBLE |
| Maximum Voltage (V) | 1000 |
| Storage Temperature (°C) | -40 - 60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
PI/DAR timed ratio tests (1587 FC only)• Live circuit detection prevents insulation test if voltage > 30 V is
detected for added user protection
• VFD low-pass filter for accurate motor drive measurements
(1587 FC only)
• Auto-discharge of capacitive voltage for added user protection
• Insulation test (1587 FC: 0.01 MΩ to 2 GΩ) (1577: 0.1 MΩ to
600 MΩ)
• Insulation test voltages (1587 FC: 50 V, 100 V, 250 V, 500 V,
1000 V),(1577: 500 V, 1000 V) for many applications
• AC/DC voltage, DC millivolts, AC/DC milliamps, Resistance (Ω),
Continuity
• Capacitance, diode test, temperature, Min/Max, frequency (Hz)
(1587 FC only)
• Auto power off to save battery power
• CAT III 1000 V, CAT IV 600 V measurement category
• Large display with backlight
• Rugged, utility hard case allows you to bring everything you
need for the job
• Included accessories: Remote probe, test leads and probes,
alligator clips, (K-type thermocouple, 1587 FC only)
• Accepts optional Fluke TPAK Magnetic Meter Hanger for
convenient hands free operation
• Three-year standard warranty; extendable to five-years through
product registration within 45 days of purchase*
