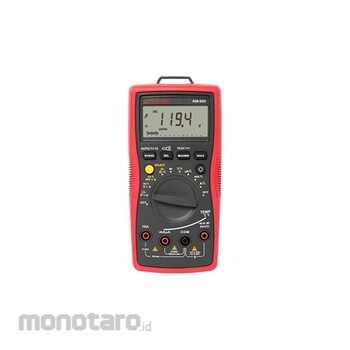

Amprobe Multimeter (Multitester)
#Grup produk P106087734
Spesifikasi
| AC Current (μA)/(mA)/(A) | 600, 6000/60, 500/ 10 |
|---|---|
| DC Current (μA)/(mA)/(A) | 600, 6000/60, 500/ 10 |
| Capacitance (nF)/(µF)/(mF) | 60, 600/6000, 60, 600/60 |
| Temperature (°F/°C) | -40 - 1832/-40 - 1000 |
| Duty Cycle (%) | 10 -90 |
| Frequency (Hz/kHz/MHz) | 60, 600/6000, 60, 600/6000, 60 |
| Resistance (ohm/kΩ/MΩ) | 600/6000, 60, 600/6000, 60 |
| Voltage (V) | 6000, 60, 600, 1000 (AC); 6000, 60, 600, 1000 (DC) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The AM-560 autoranging digital multimeter is specifically designed for advanced HVAC applications. This HVAC multimeter offers a full set of professional digital multimeter features to measure a complete range of electrical parameters and key functions for HVAC applications. Dual thermocouples take differential temperature measurements; a low pass filter enhances accuracy on variable frequency drive measurements; and capacitance can be used to check motor startup capacitors. The AM-560 also features micro amps for flame sensor troubleshooting, non-contact voltage detection, and a CAT IV safety rating.
Feature
- Measures AC/DC voltage up to 1000 V, AC/DC current, resistance, frequency, capacitance, temperature, and duty cycle- Dual thermocouple takes simultaneous temperature readings on low and high side of an HVAC system
- Low pass filter accurately measures voltage on variable frequency drives
- Non-contact voltage detection enhances safety
- Audible continuity quickly identifies shorts and opens
- Diode test to verify diode polarity
- Data hold freezes the reading on the display for further analysis
- Peak hold (crest) captures and holds the peak value of a voltage or current surge
- MIN/MAX recording records min/max measurements over time to show voltage fluctuations
- Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
- CAT IV 600 V/CAT III 1000 V safety rated for high voltage environments
