Amprobe Cable Ground Fault Locator
#Grup produk P106087497
Spesifikasi
| Tracing Mode (kHz) | 8 |
|---|---|
| Locating Mode | Ground Fault Locating |
| Display Backlight | Automatic |
| Compatible Transmitter | UAT-600-T-Transmitter |
| Display (inch) | 1.28 |
| Operating Temperature and Humidity (°F) | -4 - 122 |
| Storage temperature and humidity | -40 - 140 |
| Operating Altitude (m) | < 2000 |
| Pollution Degree | 2 |
| Drop Proof (m) | 1 |
| Size (HxWxL) (mm) | 355 x 230 x 120 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

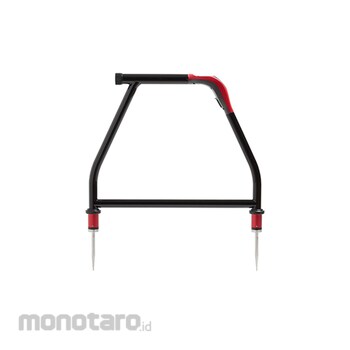

The AF-600 A-Frame cable ground fault finder is specifically designed for the Amprobe UAT-600 Underground Utilities Locator Series. In combination with the UAT-600 Transmitter, it will pinpoint the place where a cable metal conductor (either a sheath or a metallic conductor of the wire) touches the ground. It can also detect other conductors to ground faults such as pipeline coating defects.
Feature
- Optional accessory for Amprobe UAT-600 Underground Utilities Locator Series- Works in conjunction with the UAT-600-T Transmitter
- Locate cable and wires ground faults, sheath faults or pipeline coating defects (direct contact of the utility with the ground is required to pinpoint a fault)
- Used to find the point where metal is touching the ground (shield is rusted/rubber buffer is broken) and power is leaking, creating noise on a cable
- Find the point of leakage around a cable (ground faults are common problems with electric cables) – saves money by pinpointing leakage point
- Adjustable volume control
- Advanced technology and digital signal processing makes pinpointing process fast, accurate and unambiguous:
Compass guidance with numeric fault field strength indicates direction to the place of the fault
Distance sensitive left/right guidance guides the user to precisely follow the path of the buried utility
Automatic gain control quickly detects tracing signal and precisely adjust A-Frame sensitivity
