The Amprobe ACD-41PQ provides a simple and effective way to verify if the electrical system is affected by harmonics. Add on troubleshooting capabilities with the ACD-40PQ data-logging feature or get complete power analysis with the ACD-41PQ. Increase measuring efficiency with an optional PC interface kit.
THD-F is defined as: (Total Harmonic RMS / Fundamental RMS) x 100%

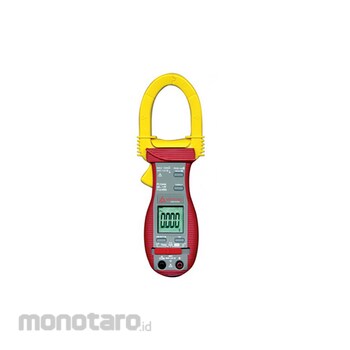

Amprobe Clamp Meter with Temperature
#Grup produk P106087415
Spesifikasi
| AC Current (A) | 40, 400, 1000 |
|---|---|
| AC/DC Voltage (V) | 600 |
| Temperature (°F) | -58 - 572 |
| Frequency (Hz) | 5 - 500 |
| Active Power (kW) | 0 - 600 |
| Reactive power (VAR) | 0 - 600 |
| Apparent Power (kVA) | 0 - 600 |
| Total Harmonic Distortion (%) | 0 - 99 |
| Accommodates conductors (mm) | 45 |
| Resistance (ohm) | 999.9 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- True-rms sensing measures active (W), reactive (VAR) and apparent (VA) power with dual-display power factor readout- Total harmonics distortion (THD), AC/DC voltage up to 600 V, AC current up to 1000 A, resistance, frequency, temperature
- Peak hold
- Optional PC interface capability (RS-232 KIT2)
- Audible continuity
- Auto power off
- Automatic polarity
- Low battery indication
- Data hold
- Large, easy to read LCD display with backlight
- Accommodates conductors up to 1.77″ (45 mm) in diameter
- Voltage overload protection for all functions up to 600 V AC/DC
