Amprobe Tang Ampere
#Grup produk P106087293
Sebelum PPN:
Rp6.699.900 - Rp7.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| DC Voltage (V) | Range : 0 - 600; Accuracy : ±1.0% + 5LSD |
|---|---|
| AC Currrent (A) | Range : 0 - 600; Accuracy : ±1.8% + 5LSD, ±2.0% + 5LSD |
| Frequency | Range : 5 - 999 (Hz); Accuracy : ±1.0% + 5LSD; Range : 50 - 400 (Hz), Accuracy : ±2.0% + 4LSD |
| Resistance (kΩ) | Range : 0 - 60; Accuracy : ±1.0% + 5LSD |
| Capacitance (µF) | Range : 0 - 2500; Accuracy : ±2.0% + 4LSD |
| Continuity Beeper Threshold (ohm) | On : ≤ 10; Off : > 250 |
| Safety Rating | CAT III 600 V |
| Non-Contact Voltage (V) | 10 - 1000 (AC) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

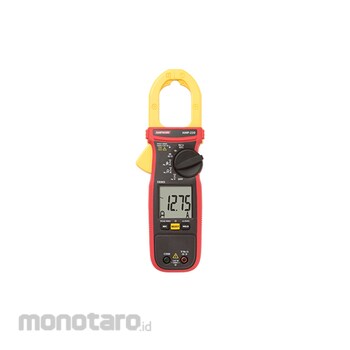

With a full range of AC/DC current, AC/DC voltage, and frequency measurement functions for basic electrical troubleshooting, the AMP-220 clamp meter with its large backlit display is an excellent amp clamp meter choice. Rated CAT III 600 V, the AMP-210 clamp meter offers True-RMS sensing, fast response processor, non-contact voltage detection, capacitance, resistance and continuity measurements to enhance efficiency and safety in today’s complex electrical environments. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. A low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency).
Feature
- Measures AC/DC Current to 600 A and AC/DC Voltage to 600 V- Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
- Amp-Tip delivers precise low AC current measurements – 0 to 60 A
- Includes a low pass filter to accurately measure voltage and current on variable frequency drives
- Capacitance measurement, continuity beeper and diode test
- Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
- Offers data hold and relative zero for quick analysis
- Maximizes battery life with auto power off and low battery indicator
- Backlit display for easy measurement viewing in bright and dim environments
- Accommodates conductors up to 1.37 in (35 mm)
- CAT III 600 V safety rated
