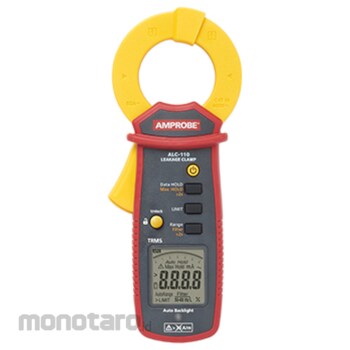

Prevent unplanned downtime by detecting leakage currents with the ALC-110 Leakage Current Clamp. Rated CAT III 600 V to ensure electrical safety, the ALC-110 is designed to resist external magnetic fields for highly accurate readings. Features TRMS, a mechanical jaw lock, max readings and hold functions, highest resolution of 0.001 mA (measure up to 60 A), broad frequency range (15 Hz to 1 kHz), selectable filters (low pass, appliance, no filter), selectable limits (0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA) and a battery-saving design.
Set content :
ALC-110
2 x AAA batteries
Soft carrying case
Amprobe Leakage Current Clamp
#Grup produk P106087132
Spesifikasi
| Low frequency magnetic fields (A/m) | ≤ 30 (operating class 2 @ IN : 3.500 mA to 600.0 mA) |
|---|---|
| Measurement category | CAT III 600 V |
| Limit Judgement (mA) | 0.25/0.5/3.5/10/12 |
| Jaw Opening (inch) | 1.2 in (Max. 30mm) |
| Auto Power OFF | Idle 20 minutes |
| AC Frequency (Hz-kHz) | 15 to 1 |
| Low Pass Filter (LPF) | 50 - 60 (for appliance measuring acc. EN61557-16 amendment A, no filter) |
| Overload Protection (A) | 60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Measure:Earth and differential leakage currents
Leakage currents through the earth (PE) conductor
Appliance current consumption without interruptions to the circuit
- Trace the source of earth leakage currents
- Identify intermittent GFCI trips without switching equipment off
- Check a system for an electrical break of insulation where current is flowing to the ground
- For use where industrial leakage current testing is required
