Amprobe Signal Clamp
#Grup produk P106086814
Spesifikasi
| Measurement category | CAT IV 600 V, CAT III 1000 V |
|---|---|
| Operating Voltage (V) | 0 - 100 (AC) |
| Operating Frequency (kHz/Hz) | Wire Tracing : 32768; AC Current Measurement : 45 - 400 |
| Response Time | Instantaneous |
| Current output of signal (typical) | 1 mA/A for AC current measurement with multimeter |
| Signal voltage output (nominal) | De-energized circuit: 2.4 V RMS, 24 Vp-p |
| Operating Temperature (°F) | 32 - 122 |
| Operating Humidity Temperature (°F) | 95%: 50 °F to <86 °F; 75%: 86 °F to <104 °F; 45%: 104 °F to <122 °F |
| Storage Temperature and Humidity (°F) | -4 - 158/<95% RH |
| Operating Altitude (m) | 2000 |
| Polution Degree | 2 |
| IP Rating | 40 |
| Drop Test (m) | 1 |
| Maximum Conductor Size (mm) | 32 |
| Dimensions (L x W x H) (mm) | 150 x 70 x 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

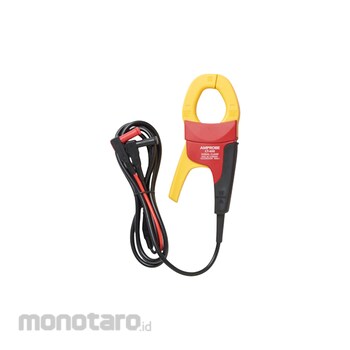

The CT-400 Signal Clamp accessory is used to induce a signal into wires without access to bare conductors. For use with Amprobe’s Advanced Wire Tracers.
Feature
- Improve accuracy and performance when there is no access to bare conductors- For use with Amprobe’s AT-6000 Advanced Wire Tracer Series – included with the AT-6030 kit
