UNI-T Power and Harmonic Clamp Meters
#Grup produk P106080458
Spesifikasi
| AC Current (A) | Range : 100; ±(2%+5) |
|---|---|
| AC Voltage (V) | Range : 600; ±(1.2%+5) |
| Frequency (Hz) | Range : 40-80; ±(0.5%+5) |
| Active Power (kW) | Range : 0.01-600; ±(3%+5) |
| Apparent Power (kVA) | Range : 0.01-600; ±(3%+5) |
| Reactive Power (kVAR) | Range : 0.01-600; ±(4%+5) |
| Active Energy (kWh) | Range : 1-9999; ±(3%+2) |
| DC Voltage Input Impedance (MΩ) | ≥5 |
| Data Storage | 999 |
| Display (mm) | 46x42 |
| Display Count | 10000 |
| Harmonic Analysis | 1 - 20 |
| Jaw Opening (mm) | 50 |
| Phase Angle (°) | Range : 0-360; ±2 |
| Phase Sequence Test | Positive phase, reverse phase, phase deficiency |
| Power (V) | 1.5 Battery (R6) |
| Power Factor | Range : 0.3-1; ±0.022 |
| Product Color | Red and Grey |
| Product Size(mm) | 303x112x39 |
| True RMS | AC Voltage/AC Current |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

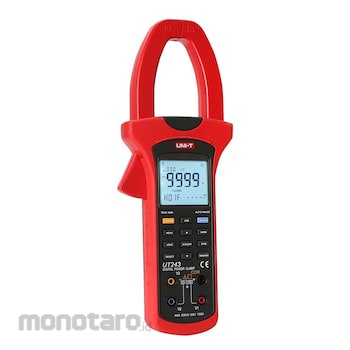

UT243 is an intelligent, handheld and stable power and harmonics clamp meter, with functions of digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more. UT243 series can measure single harmonic components up to 20 times.
Feature
1. True RMS voltage/current measurement. 2. 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements.
3. 10000 count LCD dual display.
4. Phase sequence detection.
5. Max/Min modes.
6. Auto range, auto power off, backlight, low battery indication.
7. Equipped with USB interface and PC software CD.
Use
It can be applied in power equipment/supply, circuit measurement, and power quality evaluation.Ulasan Produk
