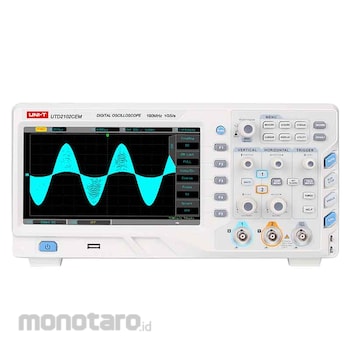

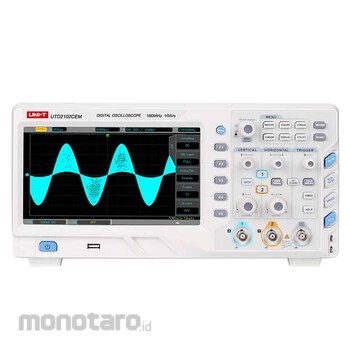

UNI-T Digital Storage Oscilloscope
#Grup produk P106080272
Spesifikasi
| Bandwith (MHz) | 100 |
|---|---|
| Channels | 2 |
| Sampling Rate | Single Channel : 1GS/s; Dual Channel : 500MS/s |
| Rise Time (ns) | ≤3.5 |
| Memory Depth (Mpts) | 28 |
| Waveform Capture Rate (wfm/s) | ≥20000 |
| Input Impedance | (1MΩ±2%)//(22pF±3pF) |
| Product Color | White and Grey |
| Product Size(mm) | 336x164x108 |
| Storage Methods | Setup, wave, bitmap |
| Trigger Types | Edge, pulse width, slope, video, runt, window |
| Vertical Scale (V/div) | 1 - 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
UTD2000CEM series is cost-effective benchtop digital storage oscilloscope with 8-inch screen, 800×480 high resolution display, 1GS/s sampling rate, 20,000wfms/s waveform capture rate, 32Mpts memory depth, a variety of trigger types, which is more suitable for general signal measurements.
Feature
1. 2 channels. 2. 70MHz/100MHz bandwidth; 1GSa/s real-time sampling rate.
3. Up to 28Mpts memory depth.
4. Calibration signal output: 10Hz, 100Hz, 1kHz (by default), 10kHz or 100kHz.
5. Max 10Mpts waveform record.
6. 8-inch TFT LCD, WVGA (800X480).
