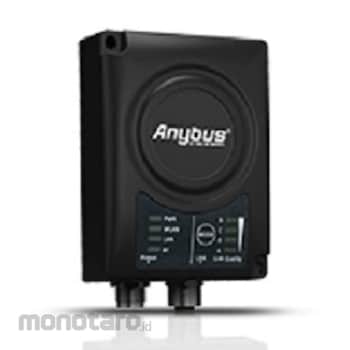

EWON Anybus Wireless Bridge
#Grup produk P106033858
Spesifikasi
| Wired Interface (Mbit/s) | 10/100 (Ethernet) |
|---|---|
| Dimensions (H x W x D) (mm) | 93 x 68 x 33 |
| Wireless Standards | WLAN 802.11 |
| Operation Modes | Access point or Client |
| WiFi channels (GHz) | 2.4, channel 1-11 + 12-13 depending on regulatory domain scan |
| RF Output Power (dBm) | 18 (EIRP) |
| Antennas (Three Internal Antennas) | 2.4 GHz; 2.4GHz MIMO 3.5GHz |
| Connectors | 1x M12 for Ethernet (4-pin, D-coded); 1x M12 for Power 5-pin, A-coded); RP-SMA antenna connector for external antenna |
| Max number of slaves for access point | 7 |
| Maximum Link Speed (Mbps) | 130 (802.11n 2x2 MIMO) |
| Maximum Range (m) | 400 |
| Mechanical Rating | IP65 |
| Net data throughput (Mbps) | 20 |
| Operating Temperature (°C/°F) | -30 to +65/-22 to +149 |
| Power Consumption (mA) | 54 (@24DVC) |
| Power Supply (V) | 9-30 VDC (-5% +20%) |
| Security | WEP 64/128, WPA, WPA-PSK and WPA2, TKIP and AES/CCMP, LEAP, PEAP |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Anybus Wireless Bridge supports up to 400 meters of reliable wireless communication and can communicate via both Bluetooth or WLAN. It is ideal for replacing Ethernet cabling in hard-to-reach or hazardous locations.
