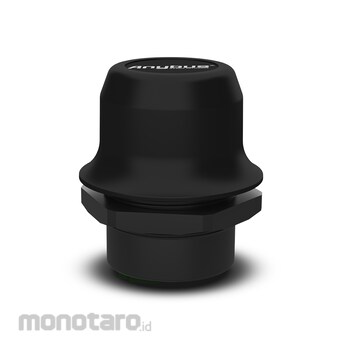

EWON Anybus Wireless Bolt
#Grup produk P106033830
Spesifikasi
| Dimensions (D x H) (mm) | 65 x 75 (95 mm including connector. Outside height: 41 mm) |
|---|---|
| Wireless Standards | WLAN 802.11 |
| Operation Modes | Access point or Client |
| Wireless LAN Bands (GHz) | 2.4/5 |
| RF Output Power (dBm) | 18 (EIRP); Bluetooth : 14 (EIRP); Bluetooth Low Energy 10 (EIRP) All including antenna gain 3dBi |
| Power Consumption (mA) | 54 (@24DVC) |
| Antenna | One built in antenna |
| Connector | RJ45 Ethernet/PoE and 3 pole screw connector for power |
| Maximum Coverage Area (m) | 100 |
| Maximum Link Speed (Mbps) | 65 (802.11n SISO) |
| Mechanical Rating | IP66 and IP67 for top (outside the host); IP21 for bottom (inside the host) |
| Net data throughput (Mbps) | 20 |
| Power Supply (V) | 19-36 VDC/PoE DTE Type1 according to IEEE 802.3af |
| Temperature Range (°C) | -40 to +65 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Anybus Wireless Bolt enables you to connect industrial machines and devices to a wireless network. It is attached onto a cabinet or a machine to enable wireless access over Bluetooth, Bluetooth Low Energy or Wireless LAN (WiFi).
