Manually operated indexer,which can be mounted either vetically or horizontally,is mainly used on milling and bor-ing machines.
With non-Lifting Hirth couping indexing,it features high accuracy and perfect rigidity

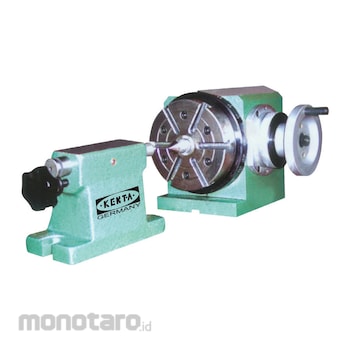

KENTA Vertical/Horizontal Dividing Head
#Grup produk P106030082
Sebelum PPN:
Rp119.999.900 - Rp139.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Divisions | 2,3,4,6,8,12,24 |
|---|---|
| Table Diameter (mm) | Ø160 |
| Thickness with Table Horizontal (mm) | 210 |
| Taper of Spindle Bore | MT3 |
| Width of Locating Key (mm) | 18 |
| Case Dimensions (mm) | 580x385x353 |
| Dimension D (mm) | 223 |
| Dimensions a (mm) | 230 |
| Dimensions b (mm) | Ø160 |
| Dimensions c (mm) | 210 |
| Dimensions e (mm) | 276 |
| Dimensions f (mm) | 170 |
| Dimensions g (mm) | 300 |
| Dimensions k (mm) | 18 |
| Indexing Accuracy (°) | 30 |
| Load Capacity of Hor.Spindle (kg) | 50 |
| Width of T-Slot (mm) | 10 |
