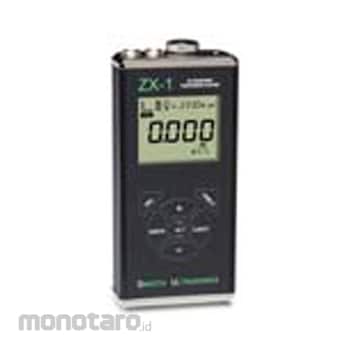

Dakota Ultrasonics Dual Element Corrosion Thickness Gauge ZX Series (Alat ukur ketebalan)

The ZX-1 & 2 are basic fixed velocity gauges that require no special training to operate. Calibration is done by simply scrolling to a known material velocity, or selecting a common material from a list of material types in the ZX-2. The gauges were designed and built to withstand the roughest industry conditions, are affordable, and backed by a 5 year limited warranty. If you're looking for a quality instrument to reliably meet or exceed your application expectations, look no further.

Applications :
- Corrosion & Pitting : Boilers.
- Tube & Pipe : Glass.
- Tanks : Variety of Applications.

TRANSDUCER :
- Dual element (transmit and receive).
- 1 to 10 MHz frequency range.
- Locking quick disconnect LEMO connectors.
- 4 foot cable.
- Custom transducers available for special applications.

POWER SOURCE :
- Two 1.5V alkaline, 1.2V NiCad, or 1.5V Lithium AA cells.
- Typically operates for 45 hours on alkaline and 23 hours on NiCad.
- Low battery indicator on display. Unit turns off automatically when battery is too low to operate reliably.

DISPLAY :
Multi-function 7 segment 4.5 digit liquid crystal display with 0.500 in digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes.
Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options.
Bar graph indicates stability of reading.

MEASURING :
Velocity Settings: ZX-1 adjustable on keypad. ZX-2 adjustable on keypad and selectable from 8 factory presets and 2 programmable custom velocity options.
Velocity Chart in./mm.
1. Steel 4340 .2330/5918.
2. Stainless 303 .2230/5664.
3. Aluminum 2024 .2510/6375.
4. Cast Iron .1800/4572.
5. Plexiglass .1060/2692.
6. PVC .0940/2388.
7. Polystyrene .0920/2337.
8. Polyurethane .0700/1778.
9. Custom.
