Hot plugging/unplugging is possible with the power of a small new interface connector device compliant with the USB standard.
Strong structure when inserting and removing.
Socket A type is mounted on PCs, USB hubs, etc. Socket B type is mounted on PC peripherals such as modems, scanners, and mice.

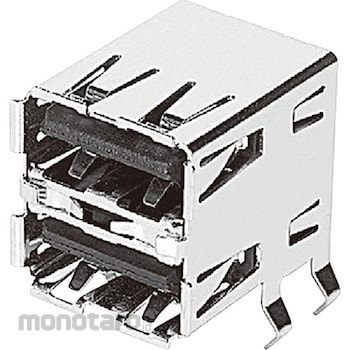

OMRON USB Connector XM7
#Grup produk P105956808
Spesifikasi
| Withstand Voltage | AC750V 1min (leakage Current 0.5mA or less) |
|---|---|
| Standard | USB2.0 |
| Rated Voltage (V) | AC30 |
| Insertion / Removal Durability (Times) | 1500 |
| Total Removal Force (N) | More than 10 |
| Insulation Resistance (MΩ) | 1000 or more (at 500 VDC) |
| Rated Current (A) | 1 |
| Contact Material | (Contact part) Phosphor bronze / nickel base Gold plating (Terminal part) Phosphor bronze / nickel base Tin alloy plating |
| Contact Resistance (miliΩ) | 30 or less (20mV or less, 100mA or less, except for the conductor resistance of the cable) |
| Material (Shell) | Copper alloy |
| Operating Temperature Range (°С) | -40 to +60 (no freezing at low temperatures) |
| Processing (Shell) | Tin plating |
| Total Insertion Force | 35.3N or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Small-sized new interface connector according to USB standard Loading and removal can be performed while the device is powered on.
Strong structure of the distortion at the time of insertion and removal.
Socket A type mounted on personal computer body, USB hub, and socket B type is implemented in PC peripherals such as modem, scanner, mouse.
