Despite the ultra-small 2.7mm depth thin snap action switch, it has a snap action mechanism and good electrical characteristics.
Can be used for applications that require strict space efficiency and high reliability.

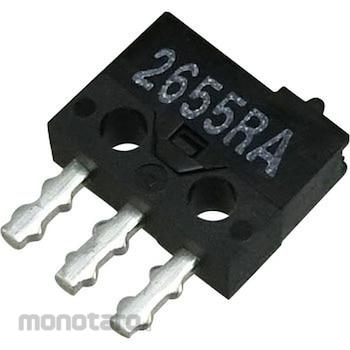

OMRON Ultra Small Basic Switch D2MQ
#Grup produk P105956525
Spesifikasi
| Electrical Durability | 10,000 times or more (30 times / min) |
|---|---|
| Contact Specifications | rivet |
| Ambient Relative Humidity (RH) | 35~85 (at +5~+ 35 ° C) |
| Contact Resistance (miliΩ) | 100 or less (initial value) |
| Insulation Resistance (MΩ) | 100 or more (with DC250V insulation resistance meter) |
| Mechanical Durability (times) | 30,000 or more (60 times / min) |
| Operating Ambient Temperature (°C) | -15 to +70 60% RH or less (with no icing or condensation) |
| Protection Class | IEC IP40 |
| Rated Voltage (V) | DC30 |
| Withstand Voltage | Between homopolar terminals, between charged metal part and ground: 500 VAC 50/60 Hz for 1 min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Depth 2.7mm Thin Snap Action Switch Despite the pole extra small sizzles, with a snap action mechanism and good electrical characteristics.
Available for high reliability requirements and is available for high reliability.
