Multi-purpose tactile switch that detects objects from multiple directions Adopts a slow-action switch mechanism.
The contact is gold-plated and has high contact reliability with a minute load.
Direct input to microcomputers and programmable controllers is possible.
There are three types of Outer Diameters: small M5, M8, and M10.
Adopting panel mounting method, easy mounting.

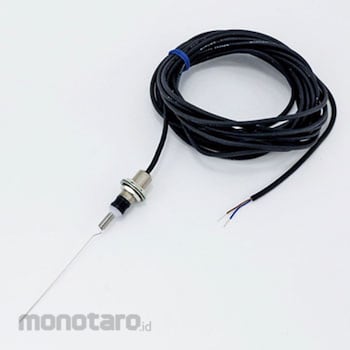

OMRON Touch Switch D5B
#Grup produk P105956303
Spesifikasi
| Protection Class | IP67 |
|---|---|
| Mechanical Durability (times) | 10 million or more (at 5 to 35 ° C, 40 to 70% RH) |
| Ambient Relative Humidity (RH) | 35-95 or less |
| Allowable Operating Speed (mm/s) | 5 to 500 |
| Allowable Operation Frequency (times/minute) | Mechanical: 120, Electrical: 60 |
| Electrical Durability (times) | 5 million or more (30 V DC, 30 mA resistance load) (at 5 to 35 ° C, 40 to 70% RH) |
| Electrical Rating | DC5V 1mA-DC30V 30mA (resistive load) |
| Insulation Resistance (MΩ) | Between terminals and non-charged metal parts 100 or more (at 250 VDC) |
| Operating Ambient Temperature (°C) | -10 to +70 (no icing) |
| Shock Resistance (m/s2) | Up to 1000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Versatile tactile switch that detects objects from multi-directionalSlow action switch mechanism is adopted.
Gold plating is performed on contact, high contact reliability with micro load.
Direct input to microcomputer, programmable controller etc. can be performed.
The Outer Diameter is 3 types of small M5, M8, M10.
Adopt panel mounting method and easy to attach.
