Reed switch is used inside the switch for high reliability in minute load areas in bad atmosphere (dust, high humidity, silicon gas, etc.) . Demonstrates high contact reliability in a minute load range.
Mounting pitch is the same as the V small basic switch.
High durability with a bounce time of 1 ms or less.

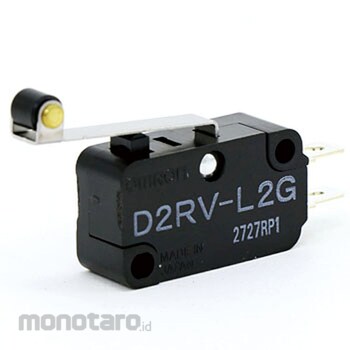

OMRON Small Basic Switch D2RV
#Grup produk P105953023
Spesifikasi
| Protection Class | IEC IP40 |
|---|---|
| Ambient Relative Humidity (RH) | 80 or less (at +5 to + 35 ° C) |
| Allowable Operating Speed | 0.1mm to 1m / s (Pin pushbutton type) |
| Contact Resistance (miliΩ) | 150 or less (initial value) |
| Electrical Durability | 3,000,000 operations or more (30 operations / min) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Operating Ambient Temperature (°C) | -10 to +60 60% RH or less (with no icing or condensation) |
| Rated Current (A) | (Opening and closing) DC 0.25 (maximum) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
High reliability in micro-load area with bad atmosphere (dust, high humidity, silicone gas, etc.) Use a lead switch to inside the switch. Demonstrate high contact reliability in the micro-load area. Value V Small Basic Switch and Mount Pitch The same.
High durability in bounce time 1 ms or less.
