High contact reliability is realized by the knife edge structure.
The knife edge structure improves contact reliability by increasing the contact pressure.
The knife edge structure allows cleaning without sealing tape.
The embossed taping packaging specifications that are optimal for automatic mounting are available.
Heat resistance is further improved by adopting high heat resistance resin. (Reflow peak temperature: 260 °C)

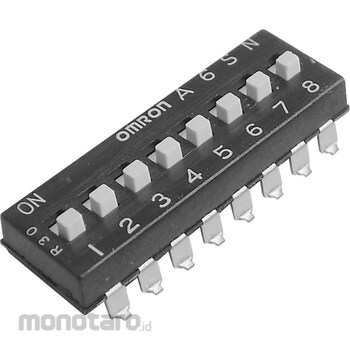

OMRON Slide DIP Switch A6SN
#Grup produk P105952945
Spesifikasi
| Color | (Strike) White |
|---|---|
| Rating | 24 mA 25 mA, 3.5 V DC 10 μA (minimum current) |
| Electrical Durability | 1000 times or more |
| Protection Class | IEC IP40 |
| Contact Resistance (miliΩ) | 200 or less (initial value) |
| Insulation Resistance (MΩ) | 100 or more (at 100 VDC) |
| Operating Force (N) | 0.98 to 7.9 |
| Operating Humidity Range (%RH) | 35 to 95 (at +5 to + 35 ° C) |
| Operating Temperature Range (°C) | -30 to +85 60% RH or less (with no icing or condensation) |
| Shock Resistance Malfunction (m/s²) | 490 or more |
| Withstand Voltage | Between terminals: 300 VAC 1 min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
High contact reliability by knife edge structure. By the knife edge structure, the contact reliability is improved by increasing the contact pressure.
Cleaning is possible without seal tape due to knife edge structure.
Available embryo steping packing specifications are available for automatic implementation.
Heat-resistant resin adoption is further improved. (Reflow peak temperature: 260°C)
