Achieves a low profile of 5.8mm on the low-profile, economy-type circuit switching connector board.
It can be used in both vertical and horizontal directions with a 2.54mm grid high-density mounting type.
Supports through-hole diameter of φ0.8.
Easy to insert and difficult to remove.
2-point contact structure with high contact reliability.
The thin plug housing uses PPS resin with excellent heat resistance.
UL standard and CSA standard certified products are standard products.

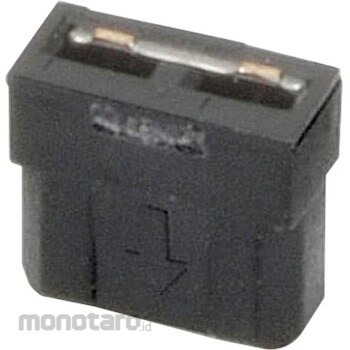

OMRON Short-Circuit Socket XG8A
#Grup produk P105952884
Spesifikasi
| RoHS Directive | 10 substances |
|---|---|
| Color | Housing: black |
| Contact Resistance (miliΩ) | 20 or less (20mV or less, 100mA or less) |
| Insulation Resistance (MΩ) | 10 <sup>3</sup> or more (at 500 VDC) |
| Number of Poles | 2 |
| Rated Current (A) | 2 |
| Rated Voltage (V) | AC300 |
| Standard | UL standard (File No.E103202) |
| Withstand Voltage | 750 VAC, 1 min (leakage Current 1 mA or less) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Low profile and economy type circuit switching connector Realized 5.8 mm and low profile on board.
It is possible to use vertical and horizontal directions in a high density mounting shape of a 2.54 mm grid.
Corresponds to Through Hole Diameter 0.8.
It is easy to insert and hard to go out.
Contact Reliable 2-point contact structure.
A thin plug housing adopts PPS resin with excellent heat resistance.
UL Standard, CSA Standard Certified Products are standard products.
